Hexprotect® SLIM Floating Cover — 99% Coverage at the Most Affordable Price for Tanks & Sheltered Ponds
Hexprotect® SLIM is a lightweight hexagonal floating cover tile designed for sheltered ponds and tanks where wind resistance is not the primary concern. Its patented low-profile design delivers 99% surface coverage for water storage tanks, sheltered agricultural lagoons, and indoor treatment basins — maximum algae suppression and evaporation control at the lowest cost in the AWTT 99% coverage range.
99%
Surface Coverage
$$
Most Affordable
1
lb/ft² Buoyancy
25+
Year Lifespan
The Problem: High-Performance Covers Cost Too Much for Sheltered Sites
For water storage tanks, enclosed lagoons, agricultural irrigation ponds, and other sheltered liquid containment sites, wind resistance is not the primary concern — but algae control, evaporation reduction, and odor suppression are just as critical as at exposed outdoor sites.
Specifying heavy-duty wind-resistant covers for low-wind applications means paying for performance capabilities you don't need. For budget-conscious operators who need maximum algae and evaporation control in sheltered environments, there has been no optimized solution — until Hexprotect® SLIM.
The Solution: 99% Coverage Optimized for Sheltered Applications
Hexprotect® SLIM was developed through intensive R&D to deliver the maximum surface coverage performance in a low-profile, lightweight tile — removing the cost overhead of wind-resistance features not needed in sheltered environments.
The result is a 99% surface coverage hexagonal tile system that achieves maximum algae suppression, up to 95% evaporation reduction, and effective odor and VOC control at the most affordable price in the AWTT 99% range. Ideal for water storage tanks, enclosed basins, and naturally sheltered lagoons.
Hexprotect® SLIM Technical Specifications
Complete specification data for sheltered pond and tank floating cover procurement.
| Surface Coverage | 99% |
| Tile Geometry | Patented interlocking hexagonal tile |
| Profile | Low-profile (slim) design — minimal stack height |
| Buoyancy | 1 lb/ft² (4.9 kg/m²) |
| Wind Resistance | 30 MPH (48 km/h) — sheltered ponds, tanks, and enclosed impoundments |
| Evaporation Reduction | Up to 95% |
| Heating Cost Reduction | Up to 70% |
| Insulation (R-Factor) | R-1 |
| Operating Temperature | −70°F to +212°F (−57°C to +100°C) |
| Material | UV-stabilized HDPE |
| Life Expectancy | 25+ years |
| Warranty | 10 years (manufacturer) |
| Maintenance | None required |
| Installation | Tool-free — pour tiles onto liquid surface |
| Cost Indicator | $$ (most affordable 99% coverage system) |
Note: For wind-exposed sites, consider Hexprotect® AQUA (130 MPH wind rated) or Rhombo Hexoshield® for higher buoyancy and insulation.
Why Hexprotect® SLIM Is the Smart Choice for Sheltered Applications
Maximum coverage performance without paying for wind-resistance overhead you don't need.
Most Affordable 99% Coverage
Hexprotect® SLIM delivers full 99% surface coverage at the lowest cost per square foot of any 99% system in the AWTT range — making maximum algae and evaporation control accessible at budget-constrained projects.
Maximum Algae & UV Suppression
99% surface coverage blocks virtually all sunlight from reaching the liquid surface, providing near-total algae and cyanobacteria suppression without chemical treatment.
Ideal for Tanks & Sheltered Ponds
The SLIM profile and 1 lb/ft² buoyancy are perfectly matched for enclosed or covered tanks, sheltered agricultural lagoons, and reservoirs in low-wind regions where maximum wind resistance is not required.

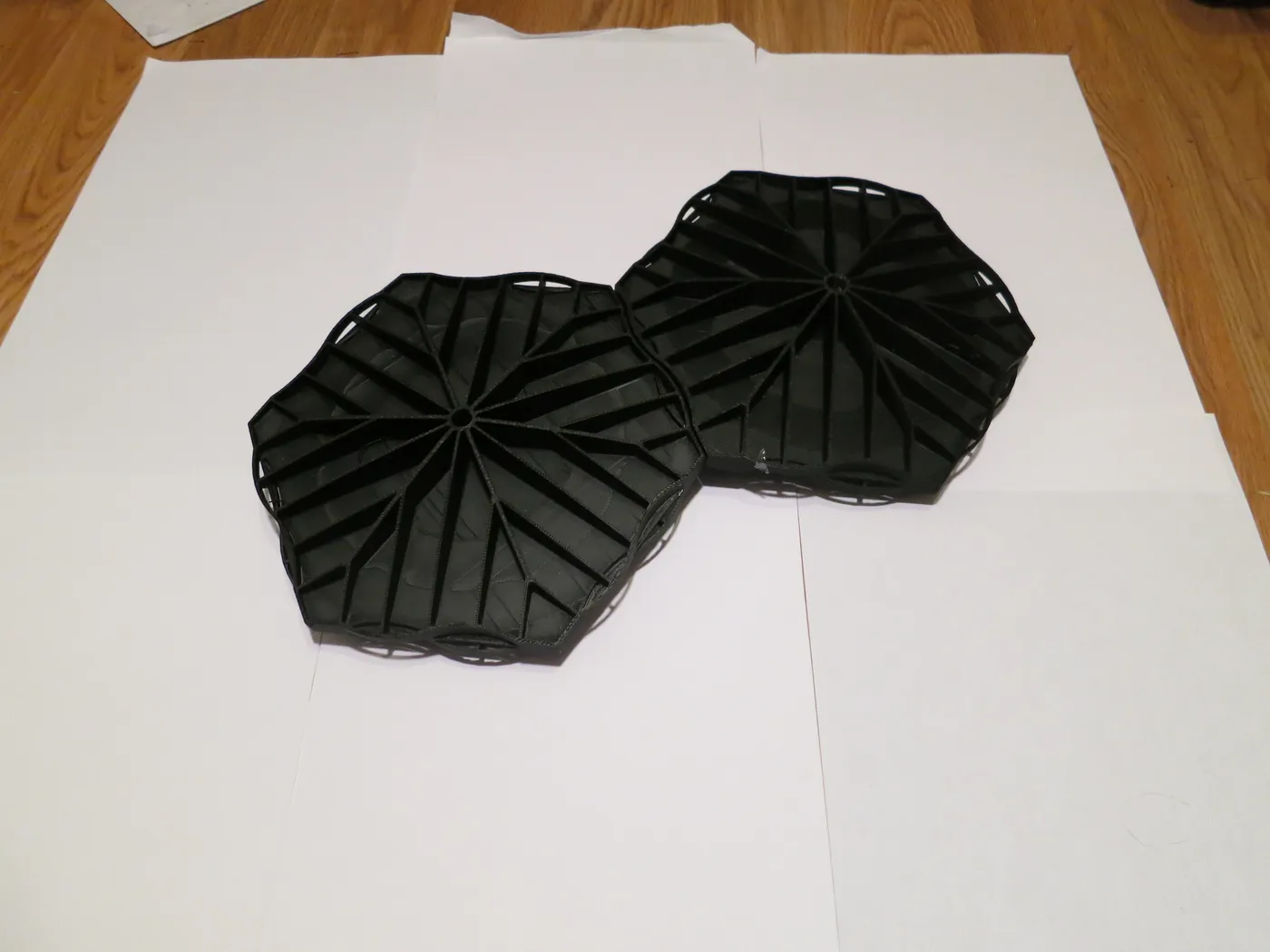

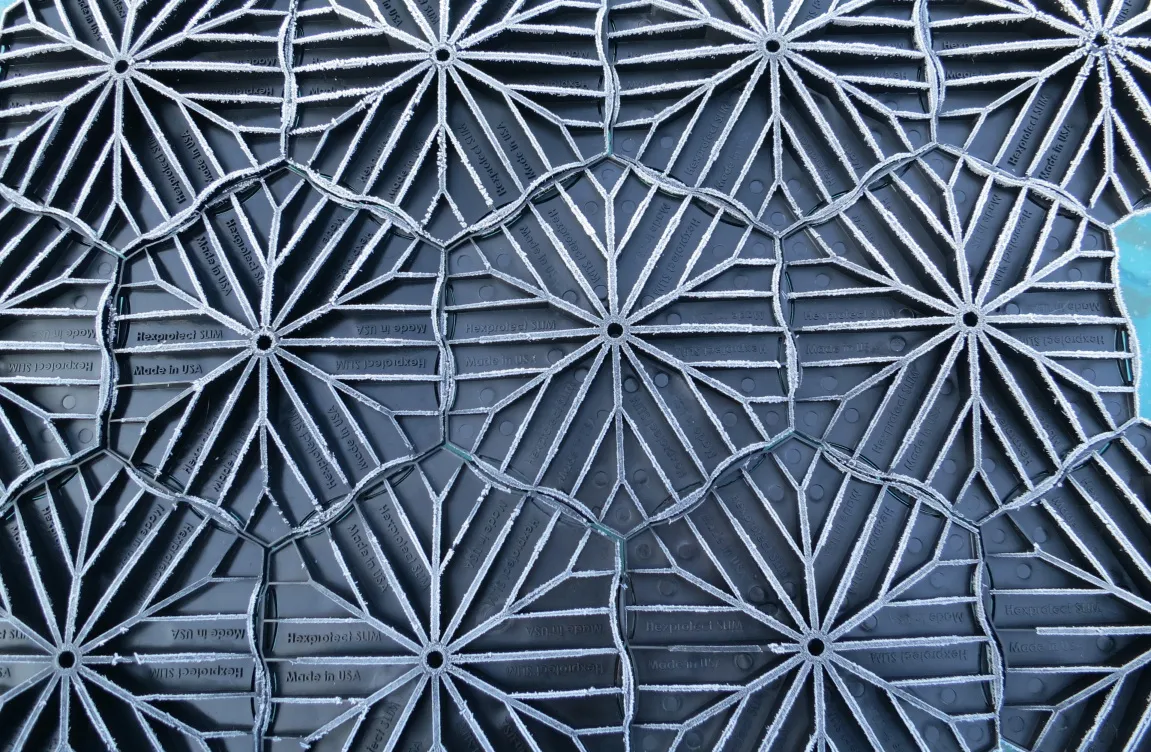

Self-Interlocking Hex Tiles
Tiles interlock automatically on the liquid surface without tools or assembly. The interlocking geometry creates a continuous, stable surface layer that maintains coverage even as liquid levels fluctuate.

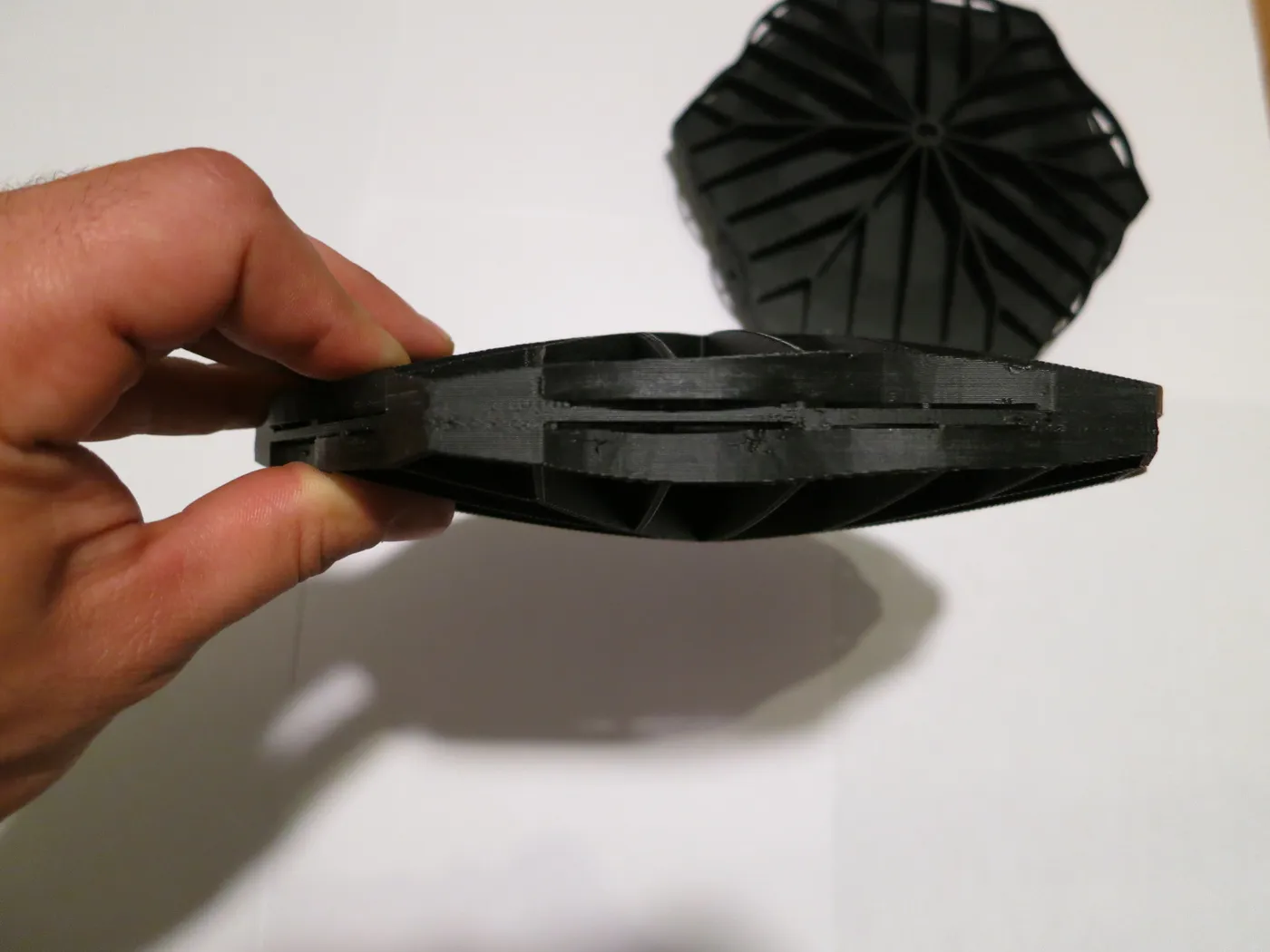

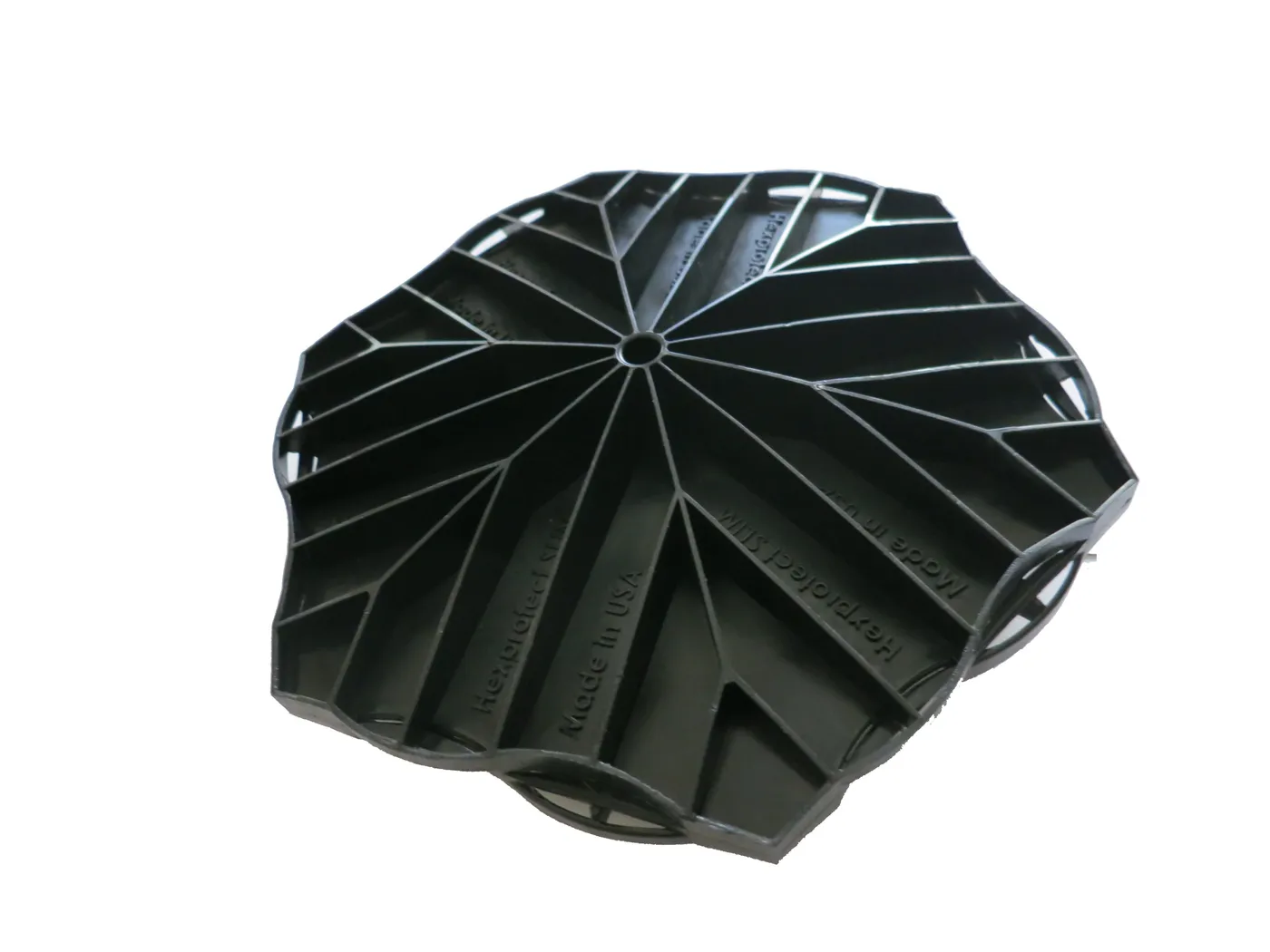

Low Profile — Fits Enclosed Tanks
The slim tile height allows deployment in tanks with limited freeboard or partial cover structures. Minimizes material volume while maintaining 99% surface coverage performance.
Tool-Free, Rapid Deployment
Pour tiles directly onto the liquid surface — the cover self-assembles immediately. No tools, no heavy equipment, no pond modification required. Operational within hours of delivery.
Hexprotect® SLIM Applications
Optimized for sheltered, enclosed, or naturally protected liquid containment sites.
Water Storage Tanks & Reservoirs
Municipal and industrial water storage — algae prevention and water quality maintenance.
Sheltered Agricultural Lagoons
Dairy, hog, and poultry CAFO lagoons in protected valley or hillside locations.
Enclosed Biogas Digesters
Anaerobic digestion basins in sheltered or covered structures requiring thermal retention.
Indoor Treatment Basins
Enclosed industrial treatment tanks where wind is not a factor and maximum coverage is needed.
Irrigation Storage Ponds
Agricultural and golf course irrigation ponds in sheltered terrain — evaporation savings.
Chemical Containment Tanks
Sheltered industrial process water tanks requiring VOC and odor containment.
Verification & documentation
AWTT keeps lab reports and project certificates request-gated, while making technical documentation for Hexprotect SLIM available to qualified specifiers.
Request-gated
Certificates, SDS, and test reports
Request material certificates, SDS sheets, wind/UV/R-value reports, and third-party documentation for submittal packages.
Public data
Technical data and comparisons
Review HTML tables, JSON/CSV data, and public specifications for coverage, wind, buoyancy, R-value, and design life.
Frequently Asked Questions
Direct answers for engineering, procurement, and compliance teams evaluating AWTT floating covers.
When is Hexprotect SLIM the right floating cover?
Does Hexprotect SLIM provide the same coverage as Hexprotect AQUA?
Should I use Hexprotect SLIM on an exposed outdoor pond?
Do AWTT floating covers leach PFAS, BPA, BPS, or BPF into drinking water?
Can AWTT provide lab reports, SDS sheets, and material certifications for submittals?
Engineering Tools & Resources
Evaporation & ROI Calculators
Calculate evaporation losses, estimate surface area, and compare cost savings across cover systems.
Not Sure Which Cover?
Answer a few questions about your site conditions and get a personalized product recommendation.
Technical Specifications
View full engineering specs, wind resistance data, R-values, and material compliance details.
Get a Hexprotect® SLIM Quote for Your Tank or Pond
Provide your tank or pond dimensions and AWTT will confirm whether Hexprotect® SLIM is the right fit — or recommend a wind-resistant alternative if your site warrants it. Same-day response available.
