Hexprotect® MAX R Insulated Floating Cover — R-17+ Closed-Cell Foam for Biogas Digesters & Heated Lagoons
Hexprotect® MAX R is an insulated hexagonal floating cover with an R-value of 17 or greater, engineered for thermal retention in anaerobic digesters, biogas lagoons, and cold-climate process water systems. Its 2.5–3" closed-cell polyurethane foam core reduces heating costs by up to 90% while maintaining 99% surface coverage for evaporation control and algae suppression.
R-17+
Insulation Value
90%
Heating Savings
99%
Surface Coverage
25+
Year Lifespan
The Problem: Heating an Open Lagoon Is Prohibitively Expensive
Anaerobic digestion requires sustained liquid temperatures — 35°C for mesophilic systems, 55°C for thermophilic — to maintain the methanogen populations responsible for biogas production. In an open or lightly covered lagoon, thermal losses to the atmosphere dominate the operating cost budget.
A single-acre open digestion lagoon in a temperate climate can require $80,000–$250,000 or more per year in heating energy to maintain process temperature — a cost that escalates dramatically in cold climates, high-altitude sites, or winter operating conditions. Without adequate insulation, biogas yield drops, methane production decreases, and operating economics collapse.

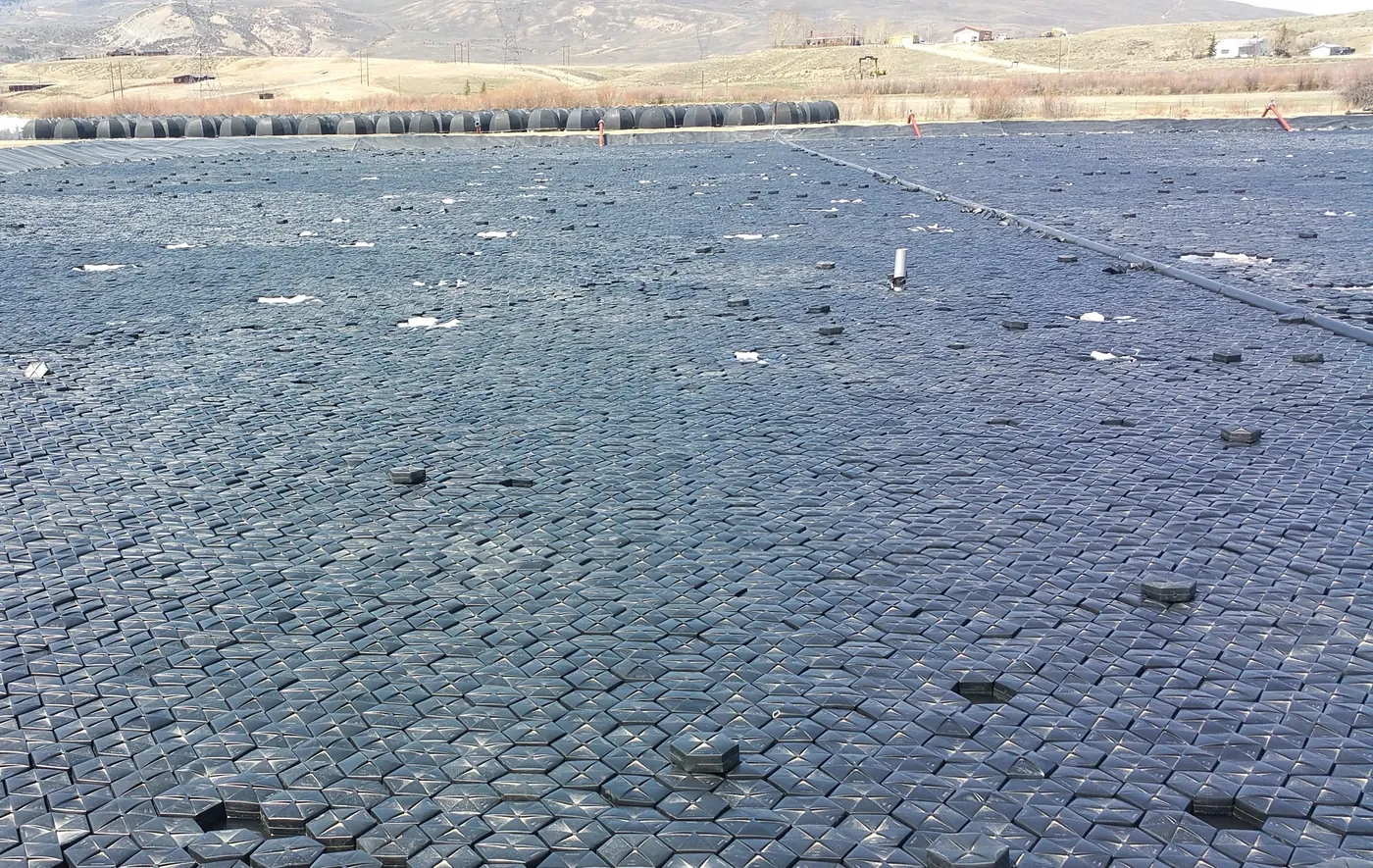

The Solution: R-17+ Foam Insulation Directly on the Liquid Surface

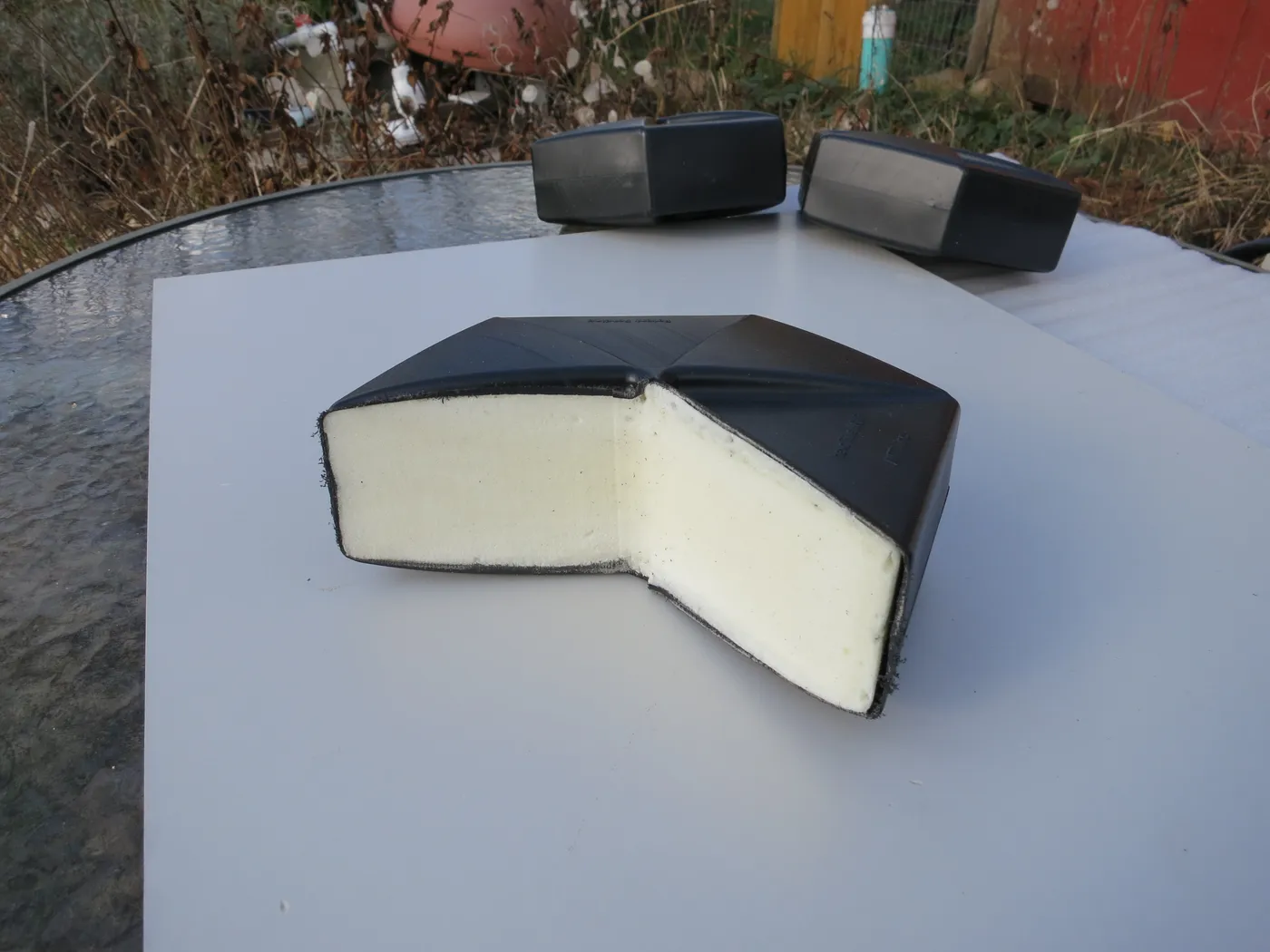

Hexprotect® MAX R eliminates the air-to-liquid interface that drives heat loss. Each tile encapsulates 2.5–3 inches of factory-bonded closed-cell polyurethane foam in a watertight HDPE shell. The foam's R-17+ insulation value forms a continuous thermal barrier directly on the digestion lagoon surface.
The result is up to 90% reduction in heating energy consumption — transforming a $200,000/year operating cost into $30,000. The typical payback period is 12–36 months. Over the 25+ year product lifespan, Hexprotect® MAX R delivers 10–20× return on the initial cover investment.
Hexprotect® MAX R Technical Specifications
Full engineering data and ROI framework for biogas and heated lagoon applications.
Product Specifications
| Surface Coverage | 99% |
| Insulation Type | Closed-cell polyurethane (PU) foam — continuous bonded layer |
| Foam Thickness | 2.5–3 inches (63–76 mm) |
| R-Value | R-17+ (highest insulation in AWTT range) |
| Insulation Rating | R-17+ (Maximum — top of AWTT range) |
| Heating Cost Reduction | Up to 90% |
| Buoyancy | 16 lb/ft² (78 kg/m²) |
| Wind Resistance | 40 MPH (65 km/h) |
| Evaporation Reduction | Up to 98% |
| Operating Temperature | −70°F to +160°F (−57°C to +71°C) |
| HDPE Shell Material | UV-stabilized HDPE — watertight, chemical resistant |
| Foam Bond | Factory-bonded closed-cell foam — no field assembly |
| Life Expectancy | 25+ years |
| Warranty | 10 years (manufacturer) |
| Maintenance | None required |
| Cost Indicator | $$$$ (premium — ROI-positive for heated applications) |
ROI Framework — Typical Heated Lagoon
| Typical Digester Heating Costs (Before Cover) | $80,000–$250,000/year |
| Heating Cost Reduction with MAX R | Up to 90% |
| Estimated Annual Savings (per acre) | $60,000–$200,000+ |
| Typical Payback Period | 12–36 months (varies by application) |
| Cover Lifespan | 25+ years |
| Net Lifetime Value (25-year period) | 10–20× initial investment |
Estimates based on typical North American installations. Contact AWTT for site-specific ROI analysis.
Why Hexprotect® MAX R Is the Standard for Biogas Insulation
The highest thermal insulation performance in the floating cover industry, combined with 99% surface coverage and 25+ year HDPE durability.
R-17+ — Maximum Thermal Insulation
2.5–3 inches of factory-bonded closed-cell polyurethane foam delivers R-17+ insulation — the highest thermal resistance of any product in the AWTT range. Maintains process temperature with dramatically reduced energy input.
Up to 90% Heating Cost Reduction
In anaerobic digestion and biogas production, maintaining mesophilic (35°C) or thermophilic (55°C) temperatures is the dominant operating cost. Hexprotect® MAX R reduces this heating demand by up to 90%, delivering ROI within 12–36 months.
Improves Biogas Yield & Treatment Performance
Stable digestion temperature is critical to methane-producing archaea activity. By eliminating temperature fluctuations, MAX R maximizes microbial population stability and biogas production rates.
99% Coverage for Maximum Evaporation & Algae Control
The hexagonal tile geometry achieves 99% surface coverage regardless of pond size or geometry — delivering full evaporation control, algae suppression, and odor management in addition to thermal insulation.
Factory-Bonded Closed-Cell Foam — No Water Absorption
Closed-cell polyurethane foam does not absorb water, maintaining its R-17+ insulation value throughout the product's 25+ year lifespan. The watertight HDPE shell protects the foam from process liquid contact.

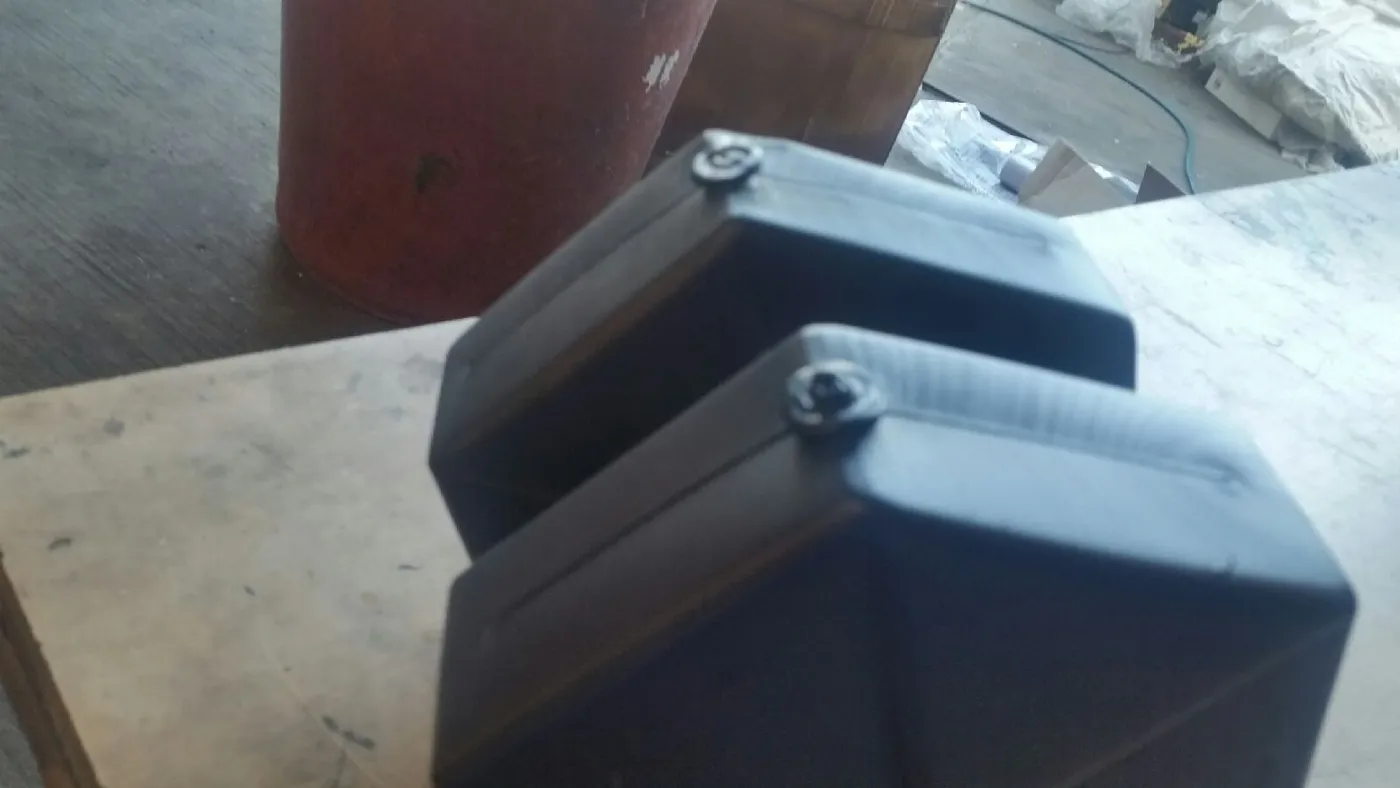

Self-Interlocking — Full Pond Coverage in Hours
MAX R tiles self-interlock on the liquid surface like all Hexprotect® systems — no assembly, no tools, no heavy equipment. The complete cover system can be deployed on a new or existing pond in hours, not days.
Hexprotect® MAX R Applications
Specified wherever a heated liquid surface demands maximum thermal insulation to maintain process efficiency and reduce operating costs.
Biogas & Anaerobic Digestion
Mesophilic (35°C) and thermophilic (55°C) lagoon insulation for maximum methane yield and minimum heating cost.
Dairy & CAFO Manure Digesters
Farm-scale and large dairy anaerobic digesters — 12–36 month payback on heating energy savings.

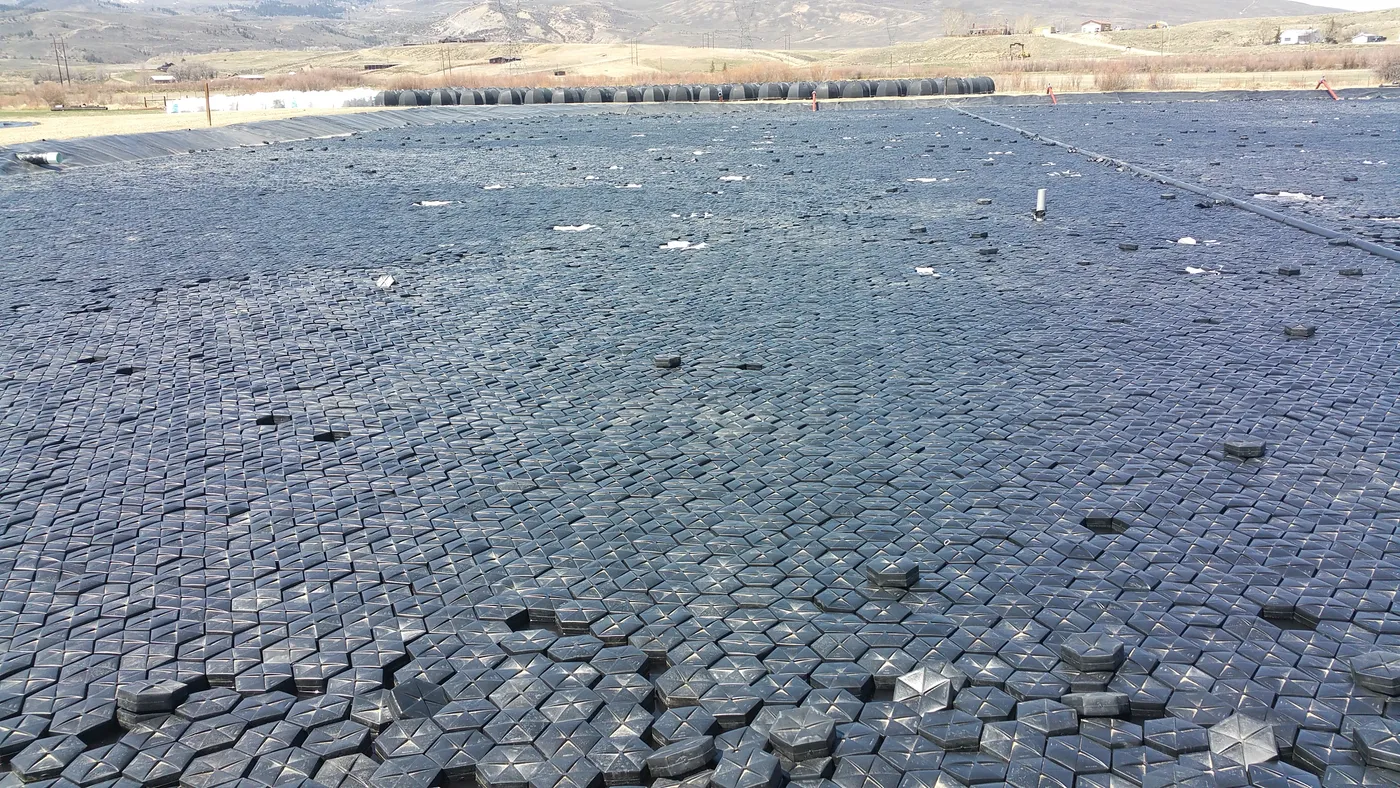

Industrial Heated Process Ponds
Any industrial process lagoon requiring sustained elevated temperatures — chemical, food processing, pharmaceutical.
Wastewater Treatment Digesters
Municipal and industrial wastewater treatment anaerobic digesters — improves VS reduction and biogas production.

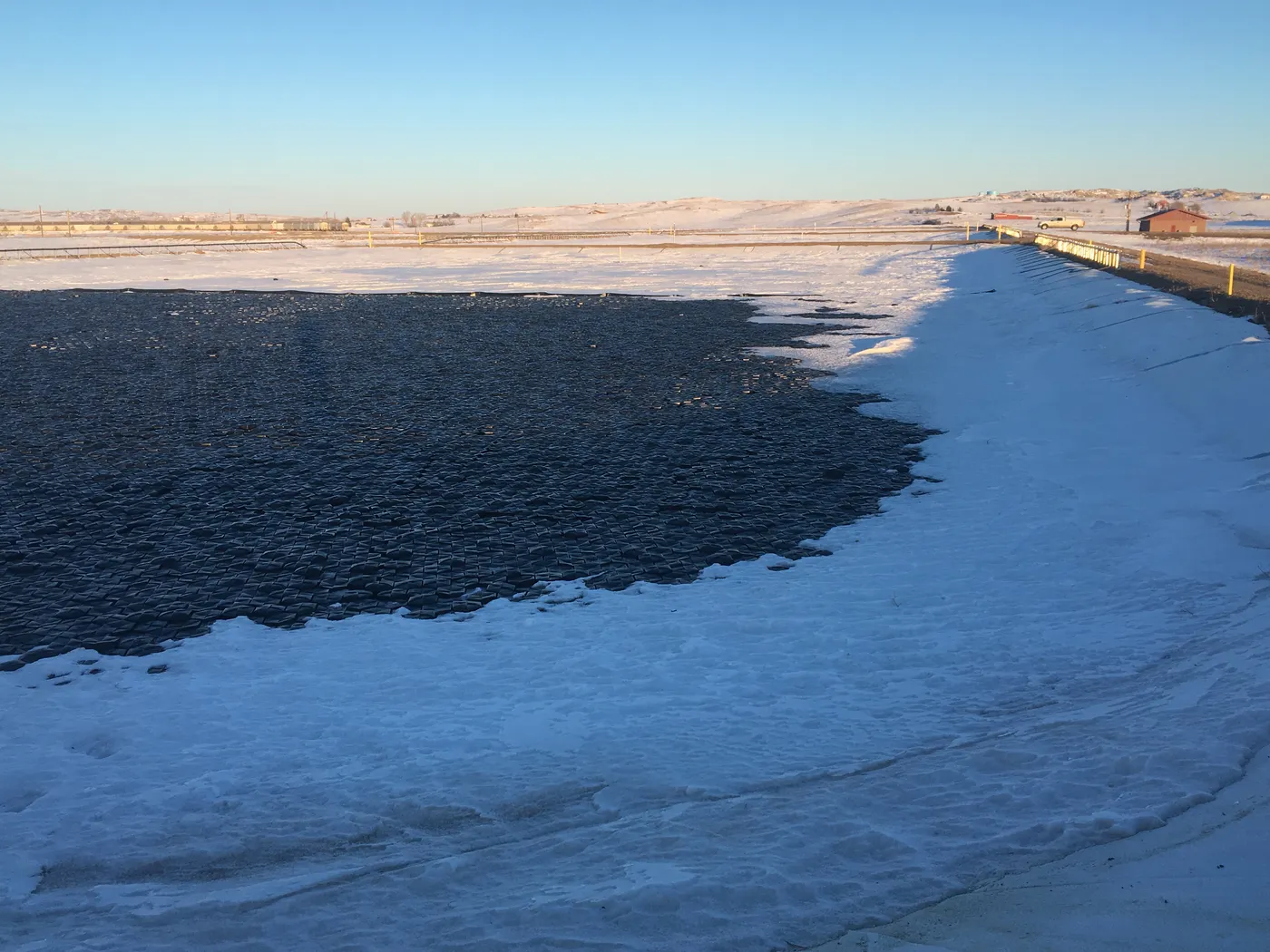

Mine Process Water (Cold Climate)
Cold-climate mine water treatment ponds requiring winter temperature maintenance for biological treatment.
Thermal Aquaculture Ponds
Aquaculture operations requiring controlled water temperature for fish or shellfish growth optimization.
Hexprotect® MAX R is one of only three AWTT covers to have survived real-world hurricane conditions — alongside Hexprotect® AQUA and Rhombo Hexoshield®. All AWTT covers at hurricane-impacted sites endured Hurricane Florence (2018), Dorian (2019), Nicole (2022), and Helene (Cat 4, 2024) with zero damage and zero repairs.
